Smooth Bore Covoluted PTFE Hose

Herkunftsort:

CHINA

Markenname:

PASSION

Zertifizierung:

FDA, RoHS, REACH

Modellnummer:

301

Kontaktiere uns

Fordern Sie ein Zitat

Produkt-Details

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

100 m

Preis

Verhandelbar

Verpackung Informationen

Gut gepackt von Poly Stripes oder als Ihre Anfrage.

Lieferzeit

Normalerweise innerhalb von 10–20 Tagen nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

T/t, l/c, paypal

Versorgungsmaterial-Fähigkeit

250.000 Meter pro Monat

VERWANDTE PRODUKTE

Smooth Bore Covoluted PTFE Hose

Erhalten Sie besten Preis

Glatte PTFE-Innenauskleidung für den Chemikalientransfer in industriellen Anwendungen

Erhalten Sie besten Preis

Glatte PTFE-Innenauskleidung für den Chemikalientransfer in industriellen Anwendungen

Erhalten Sie besten Preis

PTFE-Flockenhose mit glatter Bohrung für hohe Temperaturbeständigkeit

Erhalten Sie besten Preis

Kontaktiere uns

86-571-8102-3093

Kontakt jetzt

Produkt-Beschreibung

This PTFE hose refers to a highly specialized industrial hose engineered for conveying aggressive chemicals, high-purity fluids, or high-temperature media. Its core is constructed from PTFE (Polytetrafluoroethylene), a material renowned for its exceptional chemical resistance, wide temperature tolerance, and non-stick properties. The "Smooth Bore" feature indicates that the inner liner is seamless and flat, which minimizes pressure drop, prevents clogging, and allows for easy cleaning—critical for sanitary or precise transfer applications. The external "Convoluted" structure, with its distinct bellows-like folds, provides excellent flexibility, allowing the hose to bend and route easily in tight spaces without kinking, while also offering superior resistance to mechanical stress and vibration. This combination makes it an ideal solution for demanding sectors such as chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.

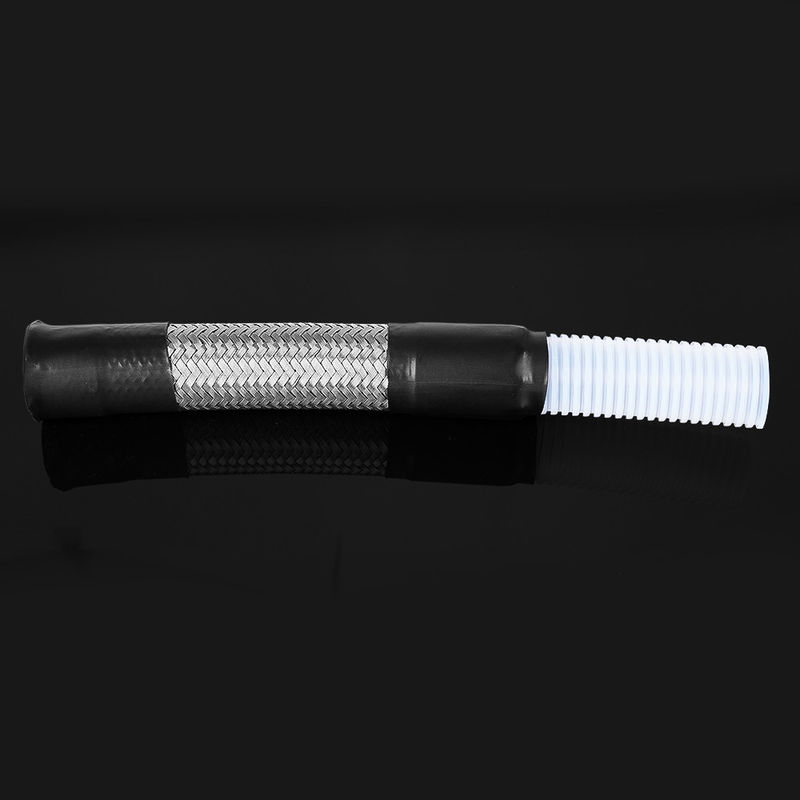

Smooth Bore Covoluted PTFE Hose 0

Tube: PTFE

Reinforcement: SS304/316 wire

Temperature: -65C to 260C

Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.

ID. (inch)	ID.(mm)	OD (mm)	Thickness (mm)	WP (bar)	BP (bar)	Min. Bend Radius (mm)
3/8"	10	13.5	1.4	90	360	25
1/2"	13	16.6	1.6	83	333	28
5/8"	16	20.5	1.8	75	300	50
3/4"	19	23.7	2	74	296	63
1"	25.4	30.8	2	59	236	90
1-1/4"	32	37	2	38	150	150

Application:

Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.

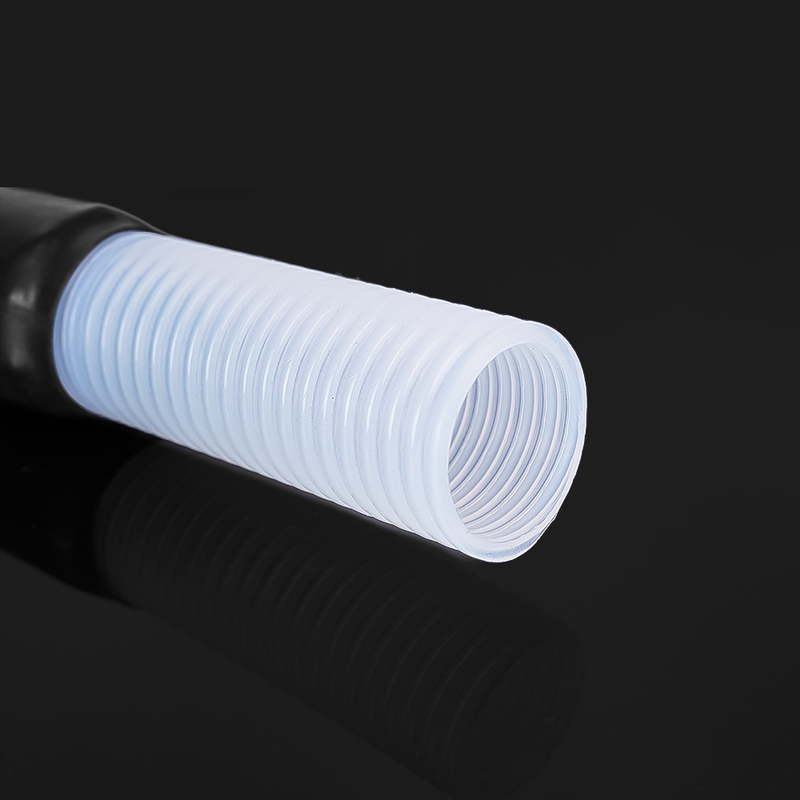

Smooth Bore Covoluted PTFE Hose 1

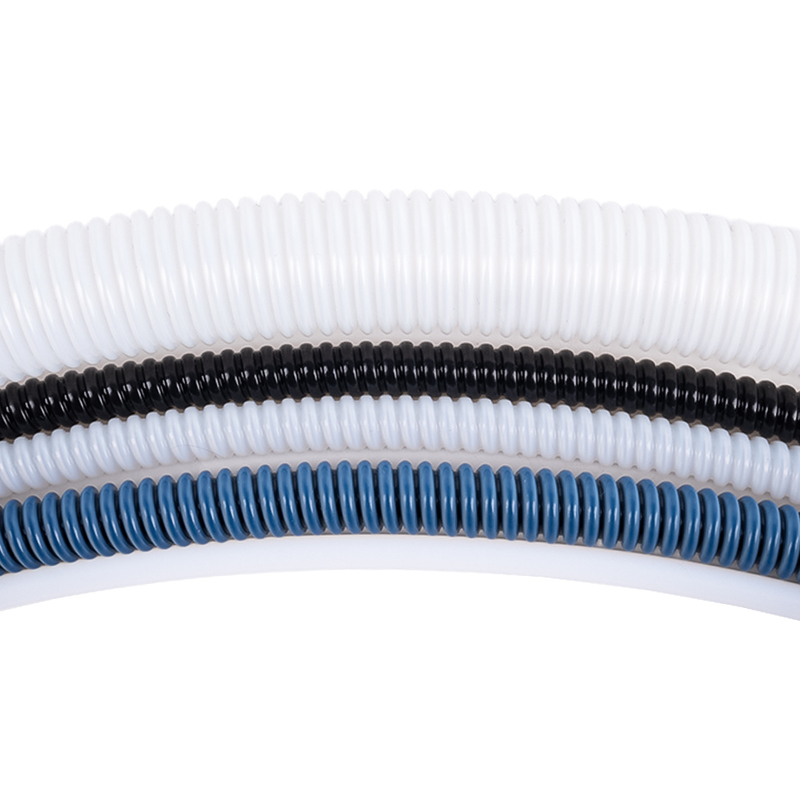

Smooth Bore Covoluted PTFE Hose 2
