Herkunftsort:
Zhejiang, China
Markenname:
PASSION
Zertifizierung:
CE, RoHS
Modellnummer:
PRA-32

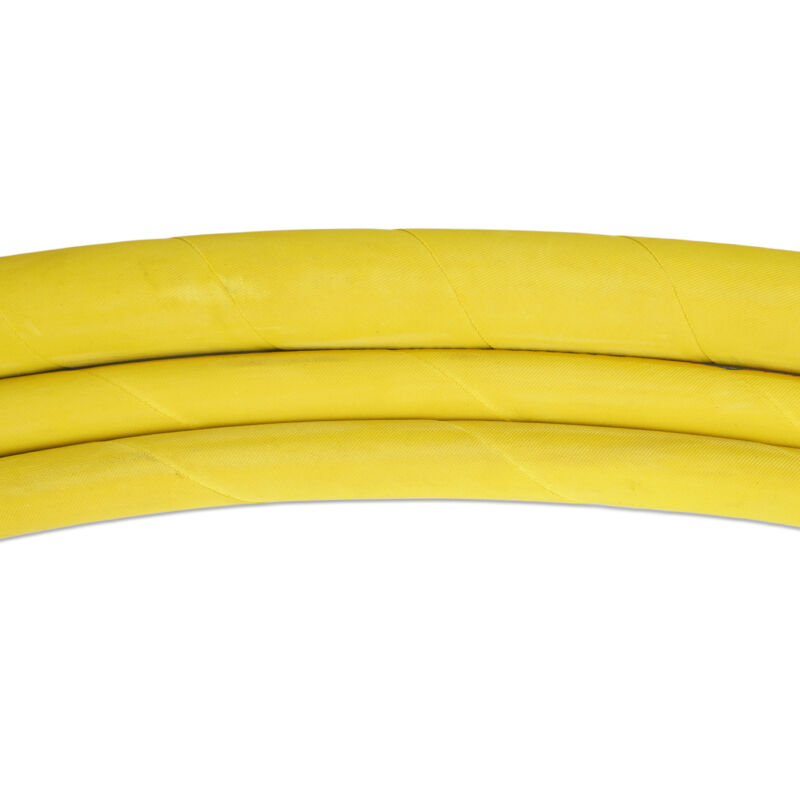

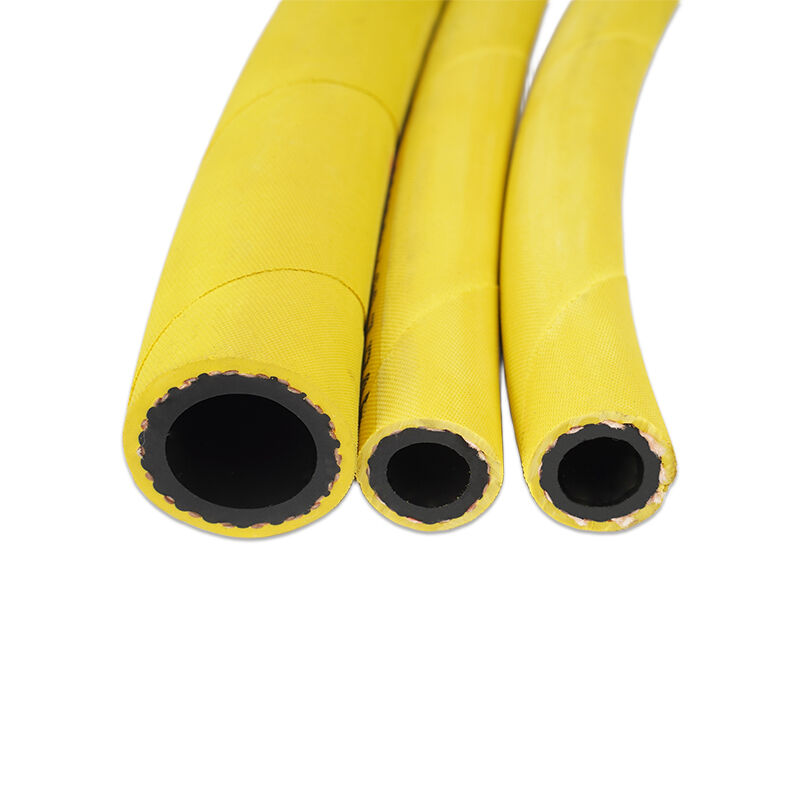

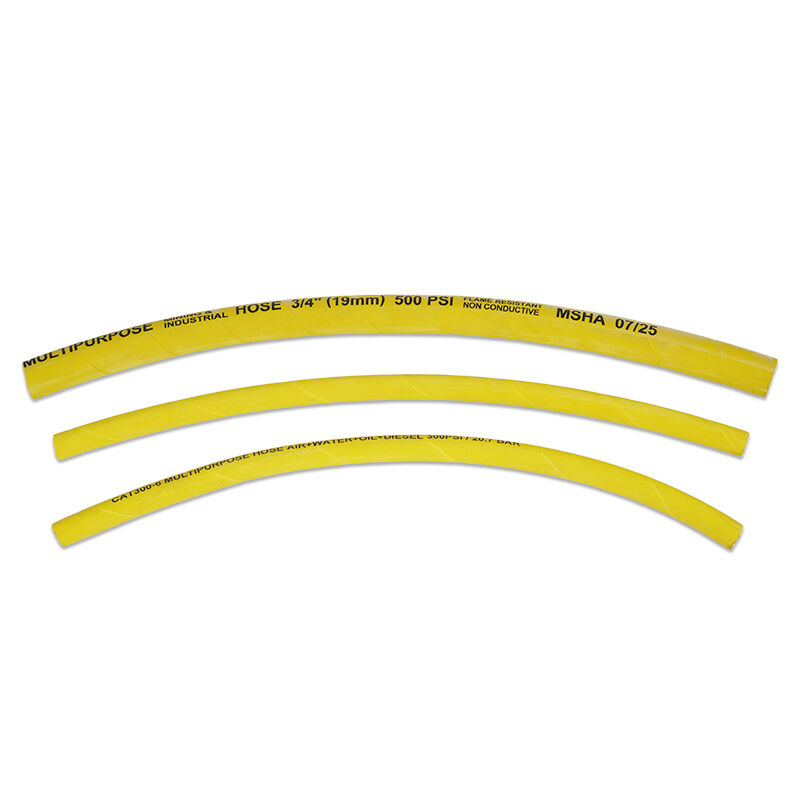

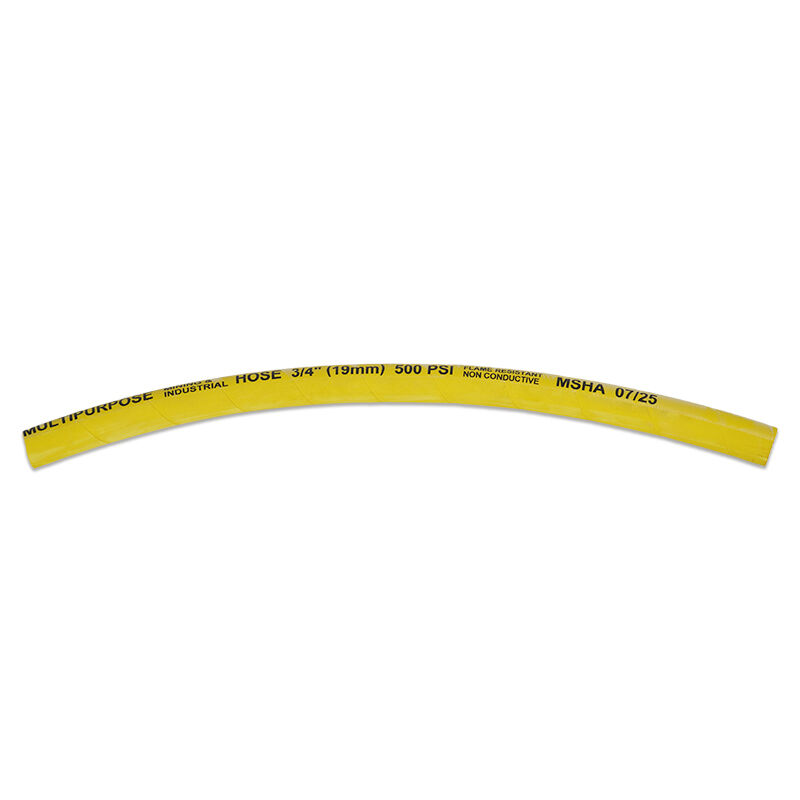

Name | Air & Water Multipurpose General Purpose EPDM Rubber Hose |
Size | 1/4"~2" or as customized |
Reinforcement | High tensile polyester fiber braided. |
Temperature Range | -30ºC ~ +80ºC |
Application | Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc. |
Certification | CE and ISO approved |
Printing Word | We can print LOGO or as your requirement. |
Packaging Detail | By woven poly stripes or as your request. |
Delivery | About 28 days for a 20' container. |
Inner Diameter (inch) | Outer Diameter (mm) | Working Pressure (bar) | Burst Pressure | Length(m) | Measurement (cbm) | Weight (kg) |
1/4" | 13 | 20 | 60 | 100 | 0.025 | 0.17 |
5/16" | 15 | 20 | 60 | 100 | 0.03 | 0.22 |
3/8" | 17 | 20 | 60 | 100 | 0.04 | 0.26 |
1/2" | 22 | 20 | 60 | 100 | 0.07 | 0.4 |
5/8 | 25 | 20 | 60 | 50 | 0.06 | 0.45 |
3/4" | 29 | 20 | 60 | 50 | 0.07 | 0.7 |
1" | 36 | 10 | 30 | 50 | 0.10 | 0.95 |
1 1/4" | 44 | 10 | 30 | 50 | 0.16 | 1.4 |
1 1/2" | 51 | 10 | 30 | 50 | 0.20 | 1.7 |
2" | 65 | 10 | 30 | 50 | 0.25 | 2.2 |
