Push Lock Hose For Fast And Convenient Full Line Installation Premium Supply From China

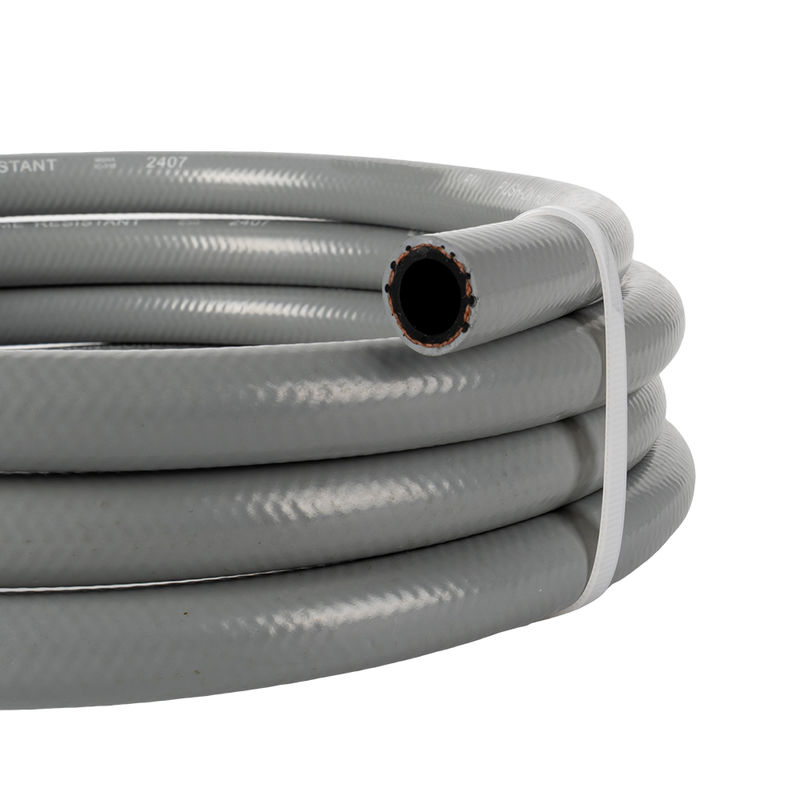

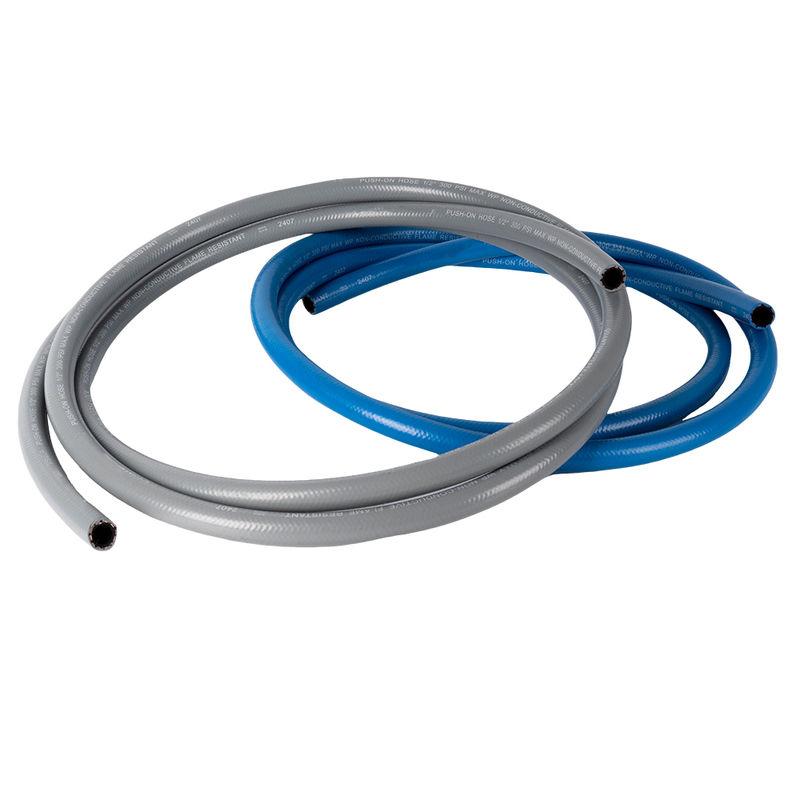

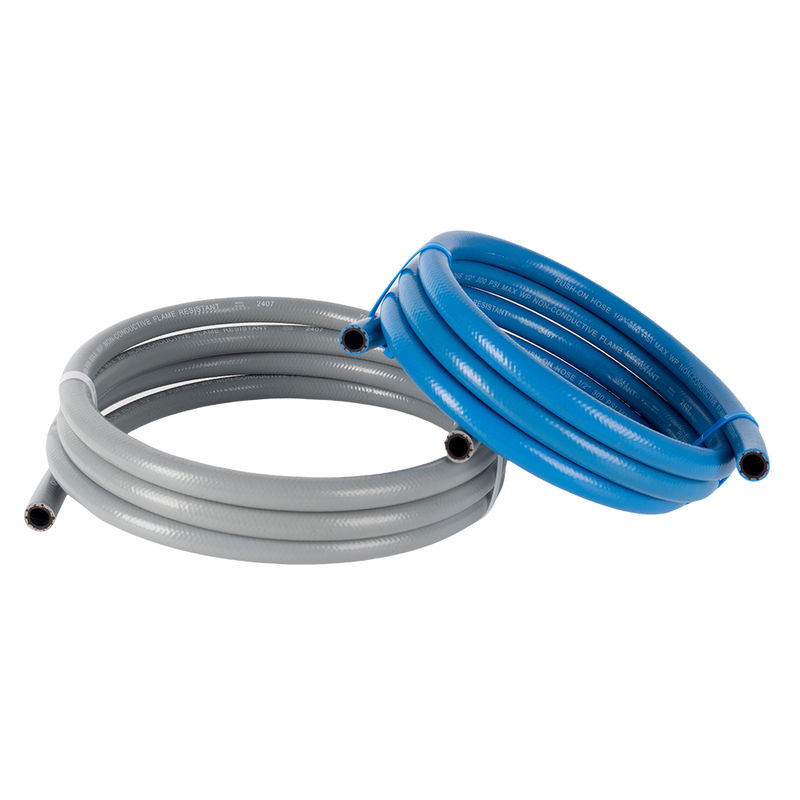

Push Lock Hose – 300 PSI Fuel & Multipurpose Hose for Industrial Use

Available Sizes: 1/4", 1" | Non-Clamp Design | Long-Lasting Performance

Product Overview

This Push Lock Hose, also known as Push-On Hose or Push-Lock Hose, is engineered for fast, clamp-free assembly and long-term reliability. Featuring 300 PSI working pressure, outstanding flexibility, and extended service life, it is an ideal solution for demanding industrial environments.

Key Features

• No Clamp Required: Easily connects with push-on fittings – no need for external clamps or tools.

• RMA Class A Oil-Resistant: Inner tube crafted from NBR synthetic rubber for superior resistance to fuel, oil, and gas.

• Robust Outer Shell: Made from CSM rubber, offering excellent abrasion, UV, and weather resistance.

• Flexible & Durable: Withstands over 5 million bending cycles, ideal for use in robotic arms, cable reels, or applications involving repetitive motion.

• Wide Temperature Tolerance: Operates reliably from -30°C to 120°C, suitable for both indoor and outdoor conditions.

• High Voltage Insulation: Non-conductive structure capable of withstanding voltages of 6000V or more.

Application Scenarios

Perfectly suited for:

• Automation & Robotics

• Assembly Lines & Molds

• T-Grade Welding Equipment

• Compressed Air, Oil, Water, and Emulsion Transfer

• Spindle Retractors or Coiling Systems

Whether in automotive manufacturing or precision welding setups, this hose is built to perform under pressure.

Technical Highlights

• Standards Compliant: Manufactured in accordance with ISO 19013 and AS 1869, meeting top European and U.S. industrial quality benchmarks.

• Safety Factor: 4:1 burst-to-working pressure ratio ensures maximum operating safety.

• Color Options: Available in black, red, blue, or customized colors upon request.

• Packaging: Standard export-safe packaging, available with pre-cut lengths or palletized on request.

Construction Details

Product Specifications

Conclusion

Need a hose that offers tool-free connection, industrial durability, and maximum flexibility?
Our Push Lock Hose is the go-to choice for automation and power equipment integrators.

Custom packaging, branding, and bulk orders available upon request.
